Elecro G2 Heat Exchanger 85kW

Description

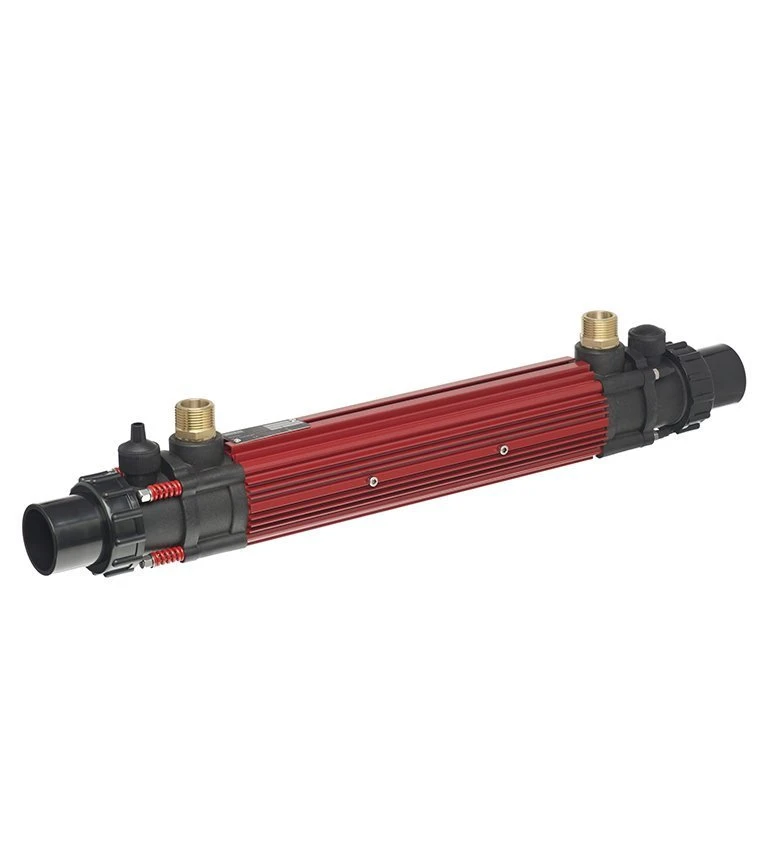

HE85T 85kW Heat Exchanger (290,000BTU)



Elecro Multi-Tubular heat exchangers are comprised of a 37-piece Titanium tube bundle, giving a vast surface contact area for the two water circuits. The primary circuit chamber – through which water from the heating source travels – is very narrow, ensuring heat is absorbed and replaced with hot water quickly. These strategic design features enable the Elecro heat exchangers to perform very efficiently even when working with low value primary temperatures, such as solar heating systems. The rigid aluminium jacket encapsulating a pocket of air thermally insulates the entire unit, ensuring that heat is transferred within the desired chamber and absorbed by the swimming pool water, rather than lost to the atmosphere. Titanium Tube Bundles make the Elecro Heat Exchangers ideal for use on Salt Chlorinated pools.

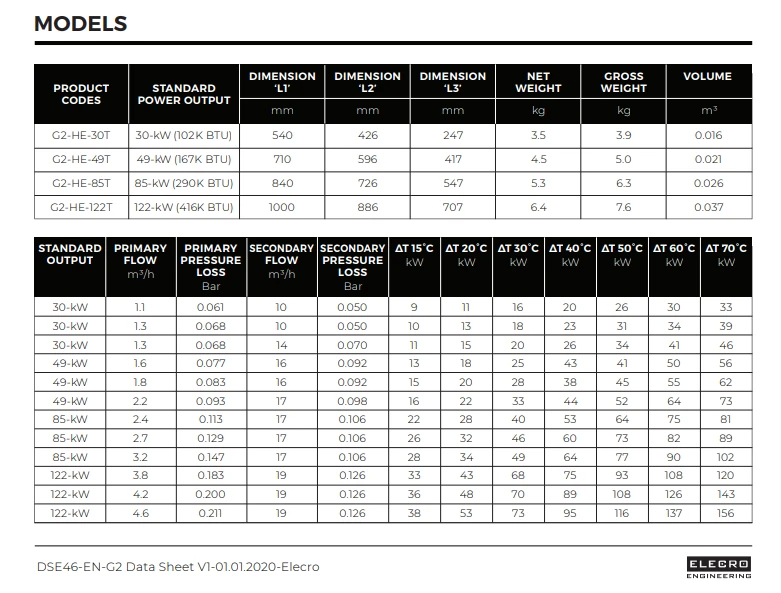

• Four models ranging from 30kW to 122kW
• Titanium tube bundle
• BS 316L Stainless Steel primary casing
• Salt and sea water compatible
• 4 bar pressure tolerance
• Low pressure drop
• With optional Smart Touchscreen Controller and Booster Pump
• Temperature and flow sensor port
• Floor or wall mountable



Free Delivery – UK Mainland Only. For delivery charges to all other areas please call or email giving your postcode
