Indux E300RW6 Semi Remote Unit

Description

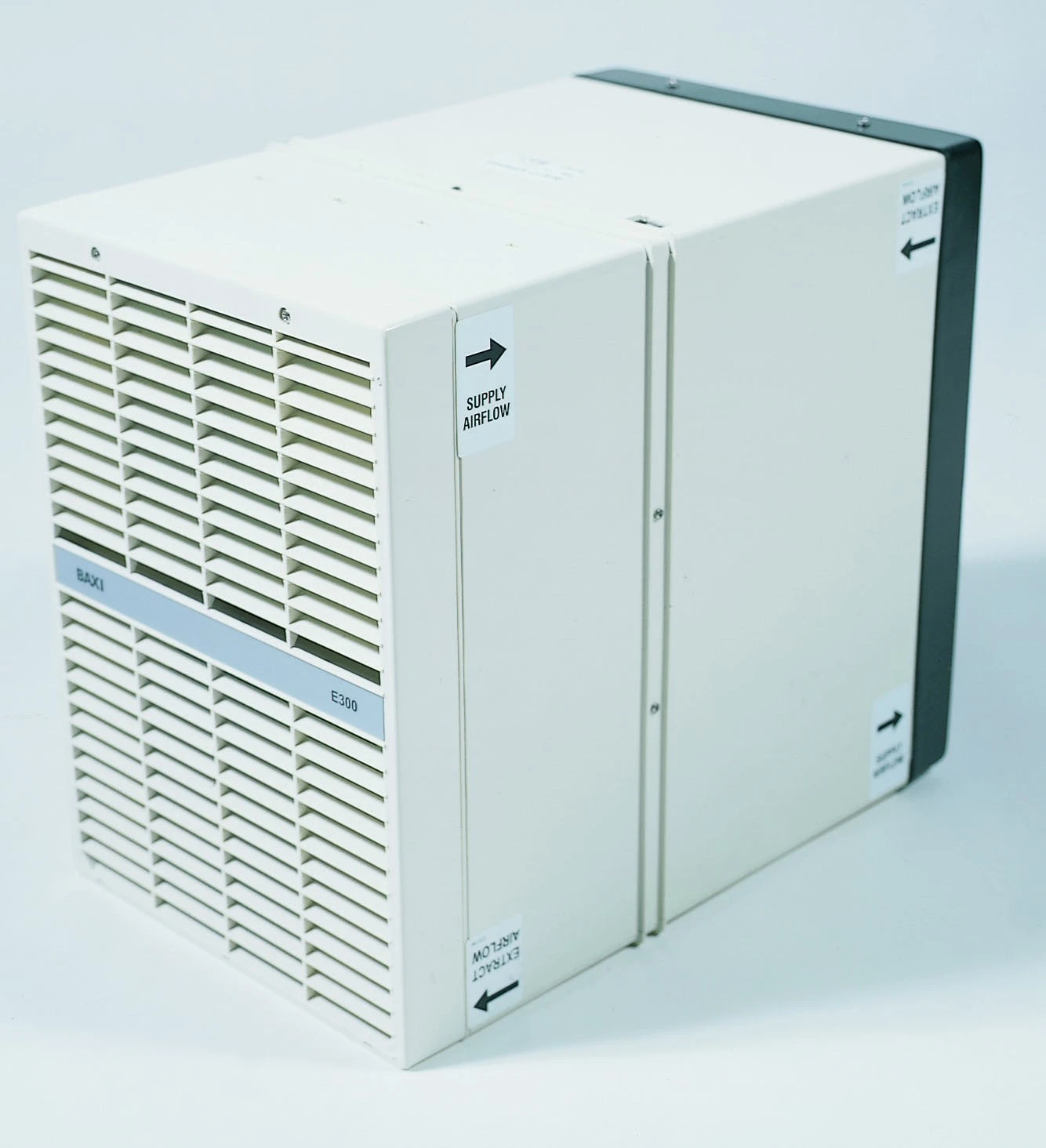

Indux E300RW6 Semi Remote Unit

The Indux E300RW6 is a semi-remote unit that is designed for external wall installation and comes equipped with two spigots for ducting connection to internal supply and extract grilles. With a heat recovery of up to 70%, the E300RW6 provides a balanced supply and extraction of air.

Fresh pre-warmed air from outside is continuously circulated into the room whilst stale air and odours are extracted. The E300RW6 unit controls condensation and eliminates mould whereas the unique plastic heat exchanger transfers heat from outgoing air to the fresh air supply without cross contamination.

With so many controls swimmers are able to create their desired environment, maintaining internal temperatures, controlling internal relative humidity and providing a fresh environment with ease.

Available in three speeds: 75, 210 and 280m³/h. Without the speed controller, the E300RW6 will only run at maximum speed. It is recommended when purchasing the E300 units to also purchase the speed controller (listed under Indux Heat Recovery Unit Accessories & Controls).

Features

Weight: 11kg
Spigots: 150mm diameter
Max ventilation rate: 280.0m³/h
Low Supply Rate: 70.0m³/h
Mains electrical supply: 230VAC 50Hz
Complies to the following approvals/directives: LVD, EMC and CE
Normal Supply Rate: 190.0m³/h
Normal Extract Rate: 210.0m³/h
Boost Supply Rate: 270.0m³/h
Boost Extract Rate: 280.0m³/h
N° speed settings: 3m³/h

Installation requirements

The unit has been designed specifically for installation in an external wall providing 150mm diameter spigots on the inner plate for ducted extraction and fresh air supply. It should be mounted through the wall in a vertical (level to assist in-built condensate drainage) position within a 280mm wide and 380mm high hole (unit size is 270mm x 370mm). The E300RW6 also requires a minimum overhang of 70mm on the outside and 50mm inside.

Ducting spigots: the unit should have 2-N° 150mm Ø x 50mm spigots.
